TFE II-GOB Series Full HD LED Display
Rugged, Reliable, Rock-Steady Performance

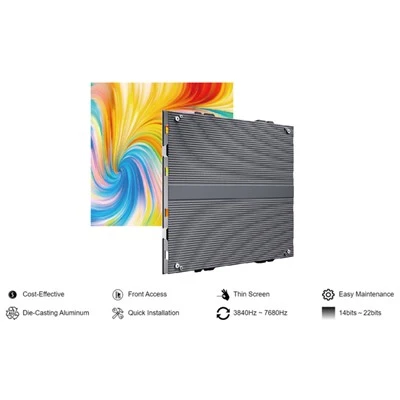

Streamlined Profile
The cabinets feature a feather light, ultra-thin design, making transport and stacking effortless without sacrificing durability.
Zero-Gap Wall Mounting with Full Front Service
Support full front maintenance and flush wall mounting --- no rear access needed, making it perfect for tight spaces like retail windows or narrow corridors.
GOB Protection, Minimizes Maintenance
GOB Coating keeps visuals crisp --- without the fragility of exposed LEDs, enhanced durability and reliability.
Flexible Connection
Standard cables connection or cable-free hub board for faster, cleaner installation.
Precision Locking for Seamless, Gap-free Splicing
Full Range of Standard Sizes
Flexible cabinet size: 640x480mm, 640x640mm, 320x480mm, 320x640mm and more --- mix and match to fit any space, any application.

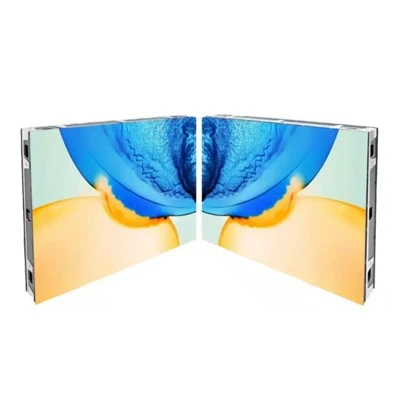

Site-adaptive Mounting -- Wall, Hanging, 90 Degree Conner or Custom

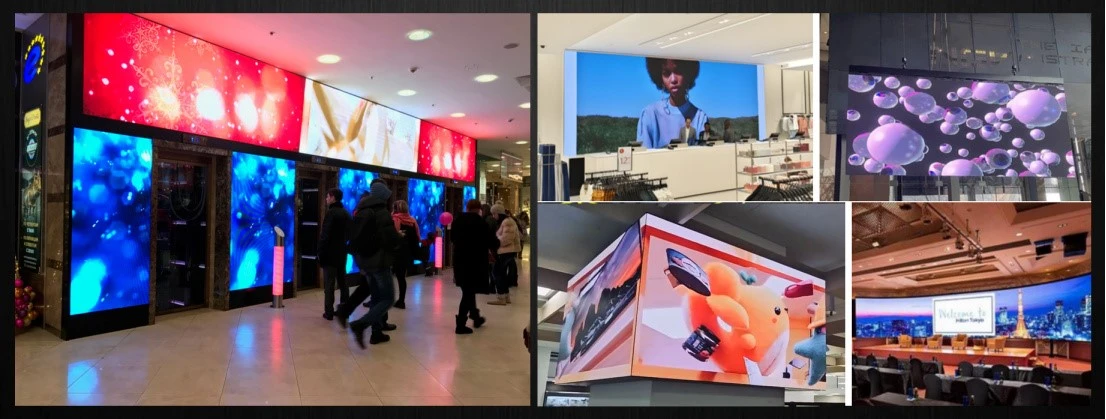

Featured Installations
Specifications
|
Pixel Pitch (mm) |
P1.25 |
P1.53 |
P1.86 |
P2.0 |
P2.5 |
|
Model No. |
TFE II-GOB 1.25 |
TFE II-GOB 1.53 |
TFE II-GOB 1.86 |
TFE II-GOB 2.0 |
TFE II-GOB 2.5 |
|
Pixel Configuration |
SMD1010 |
SMD1212 |
SMD1515 |
SMD1515 |
SMD2020 |
|
Density (Pixels/㎡) |
640000 |
422500 |
2848906 |
250000 |
160000 |
|
Module Size (mm) |
320*160mm |
320*160mm |
320*160mm |
320*160mm |
320*160mm |
|
Module Resolution (Pixels) |
256*128 |
208*104 |
172*86 |
160*80 |
128*64 |
|
Cabinet Size (mm) |
640*480mm |
640*480mm |
640*480mm |
640*480mm |
640*480mm |
|
Cabinet Resolution (Pixels) |
512*384 |
416*312 |
344*258 |
320*240 |
256*192 |
|
Cabinet Material |
Die-casting Alu. |
Die-casting Alu. |
Die-casting Alu. |
Die-casting Alu. |
Die-casting Alu. |
|
Cabinet Weight (KG) |
8 |
8 |
8 |
8 |
8 |
|
Maintenance Method |
Front |
Front |
Front |
Front |
Front |
|
Brightness (CD/㎡) |
>600 |
>600 |
>600 |
>600 |
>600 |
|
Viewing Angle (H/V) (°) |
140°/140° |
140°/140° |
140°/140° |
140°/140° |
140°/140° |
|
Gray Scale (Bits) |
14bits |
14bits |
14bits |
14bits |
14bits |
|
Color Temperature (K) |
3000 - 10000K (adjustable) |
3000 - 10000K (adjustable) |
3000 - 10000K (adjustable) |
3000 - 10000K (adjustable) |
3000 - 10000K (adjustable) |
|
Operation Power (V) |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
AC100-240V 50-60Hz |
|
Max. Power Consumption (W/㎡) |
≤600 |
≤600 |
≤600 |
≤450 |
≤450 |
|
Avg. Power Consumption (W/㎡) |
≤200 |
≤200 |
≤200 |
≤150 |
≤150 |
|
Frame Frequency (Hz) |
≥60 |
≥60 |
≥60 |
≥60 |
≥60 |
|
Refresh Frequency (Hz) |
≥3840Hz |
≥3840Hz |
≥3840Hz |
≥3840Hz |
≥3840Hz |
|
Working Temperature (℃) |
-0～+40 |
-0～+40 |
-0～+40 |
-0～+40 |
-0～+40 |
|
IP Grade |
IP30 |
IP30 |
IP30 |
IP30 |
IP30 |
